- Nominal Capacity: 2500mAh
- Maximum Discharge Current: 25A Continuous
- Rated by Sony as 35A Max Continuous (Temperature limit of 80C)
- Nominal Voltage: 3.6V
- Top: Flat Top
- Type: Lithium-ion
- Size: 18650
Specification
Type | Ā Rechargeable Li-Ion(Lithium Ion) battery |

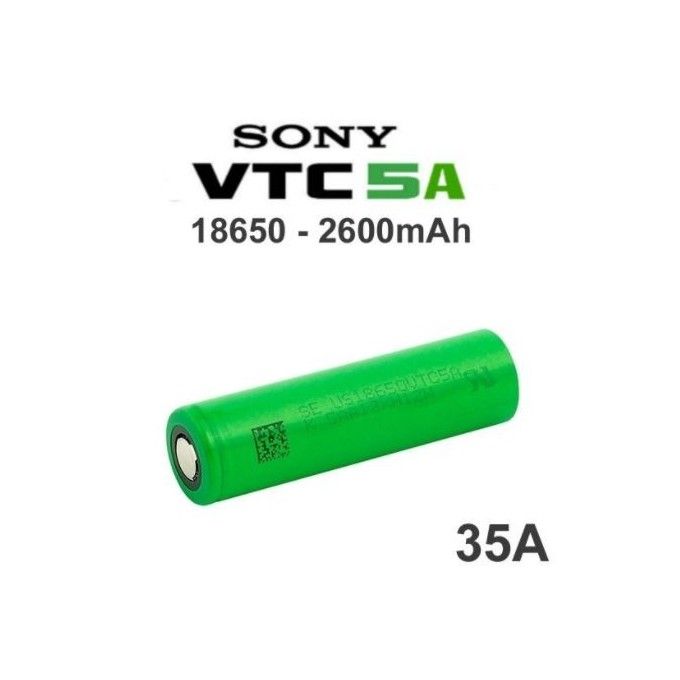

Model | Ā Sony VTC5A |
Nominal Capacity | Ā 2500mAh |
Nominal Voltage | Ā 3.6V |
Full charge Voltage | Ā 4.2V |
Operating Temperature (cell surface) | Ā Charge 0 ~ 50ā , Discharge -20 ~ 75ā |
DiameterĀ | Ā 18.35 mm |
HeightĀ | Ā 65.20 mm |
Weight Max. | Ā 44.30 g |
Positive terminal | Ā Flat top |
Ā
Safety Warning:
- Do not over-discharge or over-charge your battery.
- Recharge empty batteries (resting voltage of 3.6V) as soon as possible. Batteries that are fully drained and left in a discharged state for a long time could result in irreversible damage.
- Do not short circuit to prevent massive release of current.
- Do not dispose in fire.
- Do not leave unattended inside a vehicle.
- Do not store or carry your batteries in your pocket, purse or anywhere they can make contact with other metal objects.
- Do not leave unattended while charging.
- Discontinue use if the battery looks worn, torn, or is exhibiting unusual behaviour.
