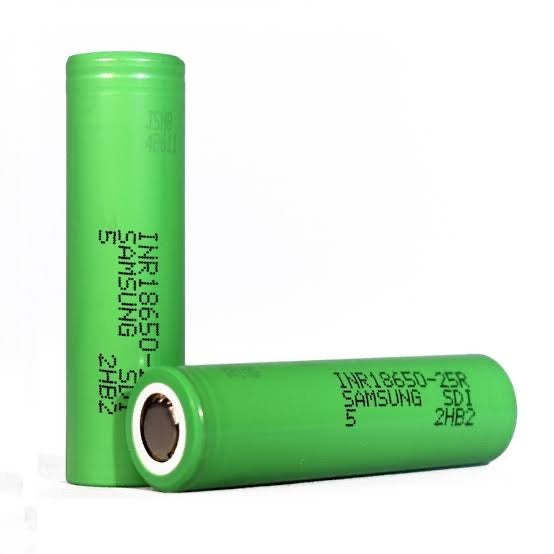

Samsung 25R 2500mAh High Drain Lithium Battery

6 items left

Genuine Samsung INR18650-25R High Drain Lithium Battery -2500mAh capacity - 20A Continuous Discharge*



The Samsung 25R is brilliant for your high Power Mods which need high current draws.



The Samsung 25R batteries are flat top so please check your mod is capable of using Flat Top batteries before purchase.



Specs:



  • Flat Top
  • Nominal capacity: 2500 mah
  • Max Continuous Rated Discharge: 20 amps (at 25 degrees C)
  • Nominal voltage: 3.6v
  • After a fresh charge: 4.2v
  • Cycle info: Capacity drops to 60% after 250 full charge/discharge Cycles
  • Don't discharge below: 2.5v
  • Standard Charge: CC/CV @ 1 amp / 4.20 volts +/- .05v, 100 mA cut-off
  • (Max) Rapid Charge: CC/CV @ 4amps / 4.20 volts +/- .05v, 100 mA cut-off
  • Impedance: 22.15 +/- 2 milliohms
  • Weight: 45g
  • Height: 64.85 +/- 0.15mm
  • Diameter: 18.33 +/- 0.07mm
  • Operational Charging Temperature Range: 0 to 50 degrees C (best below 45 degrees C)
  • Operational Discharging Temperature Range: -20 to +75 degrees C (best below 60 degrees C)
  • You can store them for 1.5 years at -30 to + 25 degrees C, 3 months at 30 to 45 C and 1 month at 30 to 60 C (in other words, store them in a cool place and they'll last longer)





Inclusions :

  •  1 x Samsung 25R High Drain Battery
